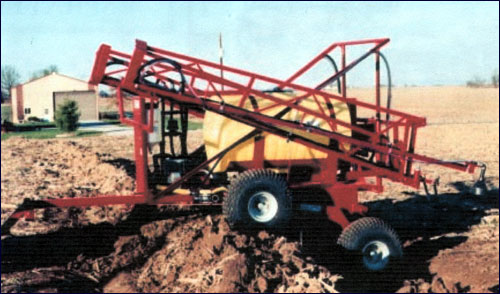

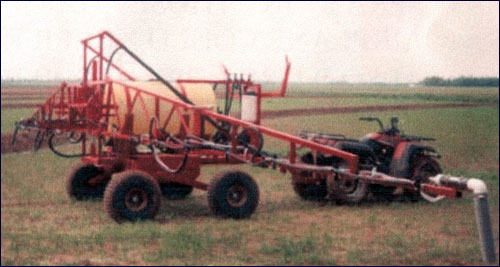

LEVEE LEAPER SPRAYER The Levee Leaper has an adjustable stop to prevent the leading wheels from hitting the furrow wall. LL axle design prevents dragging. Pulling vehicle is up and over and out of the furrows before it begins to pull the sprayer over the levee. - 50" - 60" Self-leveling boom - High floatation tires - Electronic rate controller adjust the spray rig on the go - Foam marker - Eliminates shovel work, no wheel tracks in soft levees - No more waiting for the wind to die down - Spray in those hard to reach places, that the airplane could never reach - Also works great for row crops, burndown, etc. 200 - 300 + rice acres/day & 300 - 400 ac. burndown & post (little to no drift) no wind MPH limit like aerial burndown General Specifications 47.5', 50' or 60' Self-leveling foot boom STANDARD FEATURES: ADJUSTABLE WIDTH LEVEE LEAPER AXLES. ADJUSTS FROM 90" TO 120" CENTERS, NO TELESCOPING TUBE WITHIN TUBE TO RUST OR BIND EXTERNAL CLAMPING (PREVENTS BINDING) COMFORT CRANK ADJUSTABLE BOOM HEIGHT (23" UP & DOWN STROKE) SIDE SWING BOOM SPRAYING SYSTEMS DIAPHRAGM CHECK VALVE QUICK TEE-JET NOZZLE BODIES (NO DRIP) WITH QUARTER TURN QUICK TEE-JET SNAP CAPS BEAN BLASTER, TWIN JET TIPS, SPRAYS TWO FLAT FAN PATTERNS, ONE 30 DEGREES FORWARD, ONE 30 DEGREES BACKWARDS FOR DOUBLE COVERAGE 110 DEGREE ANGLE TIP FOR 100% OVERLAP RESULTS IN FOUR ANGLES OF ATTACK ON 30" CENTERS, "TAKES ADVANTAGE OF THE CHISEL EFFECT". UNBELIEVABLE COVERAGE MAKES THE BEAN BLASTER EXCELLENT FOR ALL POST PRODUCTS AND BURNDOWN WORK. ALL STAINLESS TIPS. SELF-LEVELING BOOM WITH CAST IRON HINGES (FOR LONG LIFE) HONDA 5.5 HP ENGINE WITH 650 ACE HIGH CAPACITY PUMP MUD SHIELD, KEEPS MOTOR DRY IN WET FIELDS ELECTRIC SOLENOID VALVES (LOW AMP) LEFT, CENTER AND RIGHT EACH BOOM SECTION IS CENTER FED (NO NOZZLE STARVING) 200 GALLON POLY DEEP SUMP TANK WIDE OPEN TEE AGITATION SWEEPS ACROSS TANK BOTTOM WITH FULL TIME VIGOROUS AGITATION (EXCELLENT FOR ALL TYPES OF CHEMICALS) LIQUID ONLUY STRAINED UPON NOZZLE DELIVERY (DOES NOT HAMPER AGITATION OF HEAVY SOLUTIONS). NYLON STRAINER WITH STAINLESS STEEL SCREEN TIRE SIZE 25" X 12" X9" -- ATV HIGH FLOTATION TIRES 2 INCH BALL COUPLER HITCH & SAFETY CHAIN WITH GREASE ZERK (KEEPS BALL GREASED WHILE HOOKED UP) ADJUSTABLE HITCH HEIGHT FED FRAME -- YELLOW TANK OPTIONAL EQUIPMENT: MICRO TRACK MT-3405 FII SPRAY CONTROLLER OR 844 E SPRAY CONTROLLER FOAM MARKER TEE JET GUIDELINE GUIDANCE SYSTEM

JM Innovations, Inc. 9304 Hess Road Edwardsville, IL 62025
